HEA Flexible Cable Assembly (Igniter Power Cable)

The HEA Flexible Cable assembly connects the HEA Exciter Power Pack to the HEA Spark Rod.

STANDARD SPECIFICATIONS
Conduit
  • Standard Conduit - Liquid-Tight Flexible Steel Conduit (UL/cUL Listed) Hot-dipped galvanized steel core, Size: 3/8" by square locked and a continuous copper bonding strip build into the core, Liquid Tight, Oil Resistant, Sunlight Resistant, Flame retardant, IP 67 with PVC-thermoplastic jacket. Dry up to 80° C, 75° C for Oil.
  • Stainless Steel Braided Conduit: SS 304 Corrugated with SS 304 braided conduit is available. Working Temperature up to 125° C
  • Special Heavy Duty Co-axial Cable for specific requirement.
Type : Straight Cables (without Bend)/ Single Bend/ Dual Bend
Length : 12 Feet (Customizable lengths are available as per requirement)
Connection : PIN, Wired, 2 pin connectors
Voltage Rating : Suitable for working up from 1000V DC to 3600V DC (Max. 4000V DC)
Temperature Range : -55°C to 110°C
pro_image

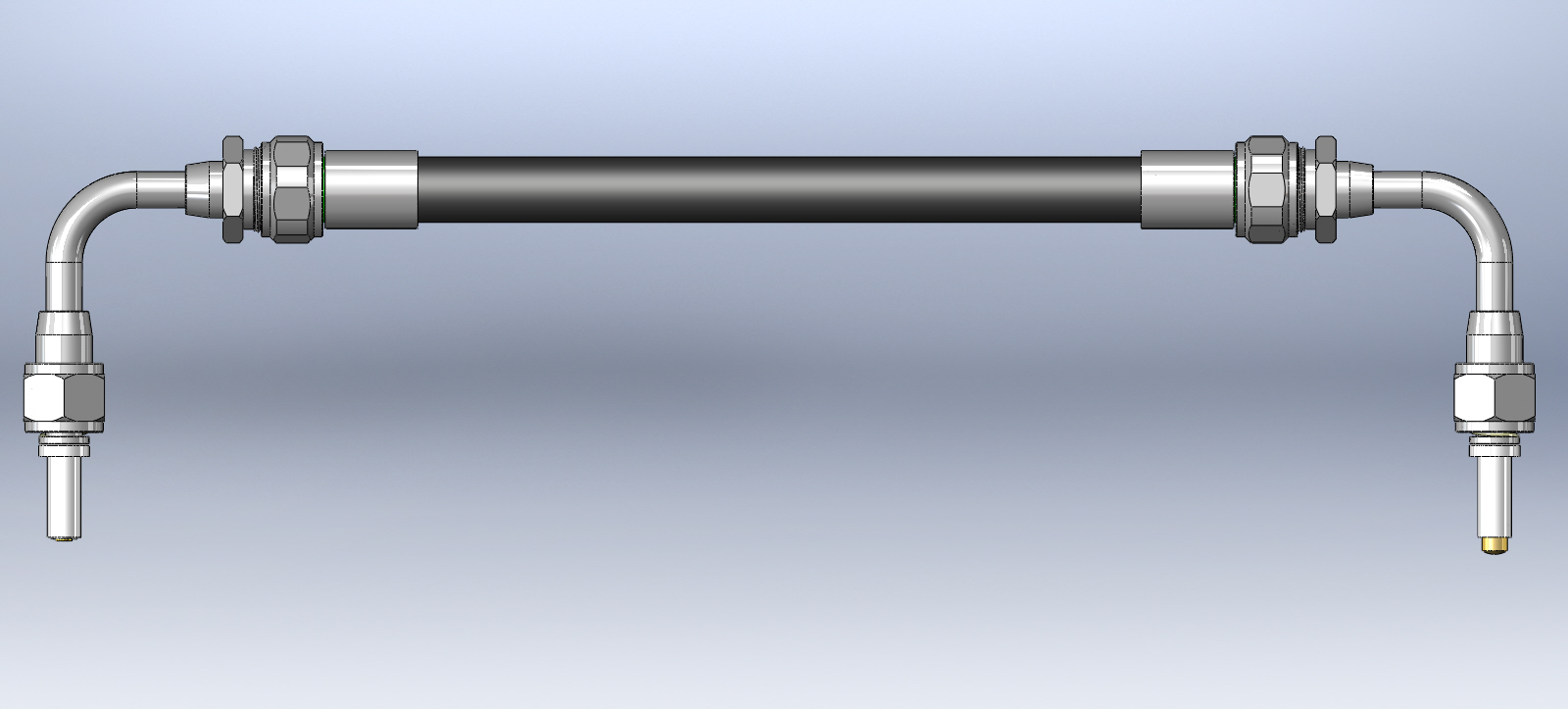

Part No.: HT-FCA-1011

pro_image

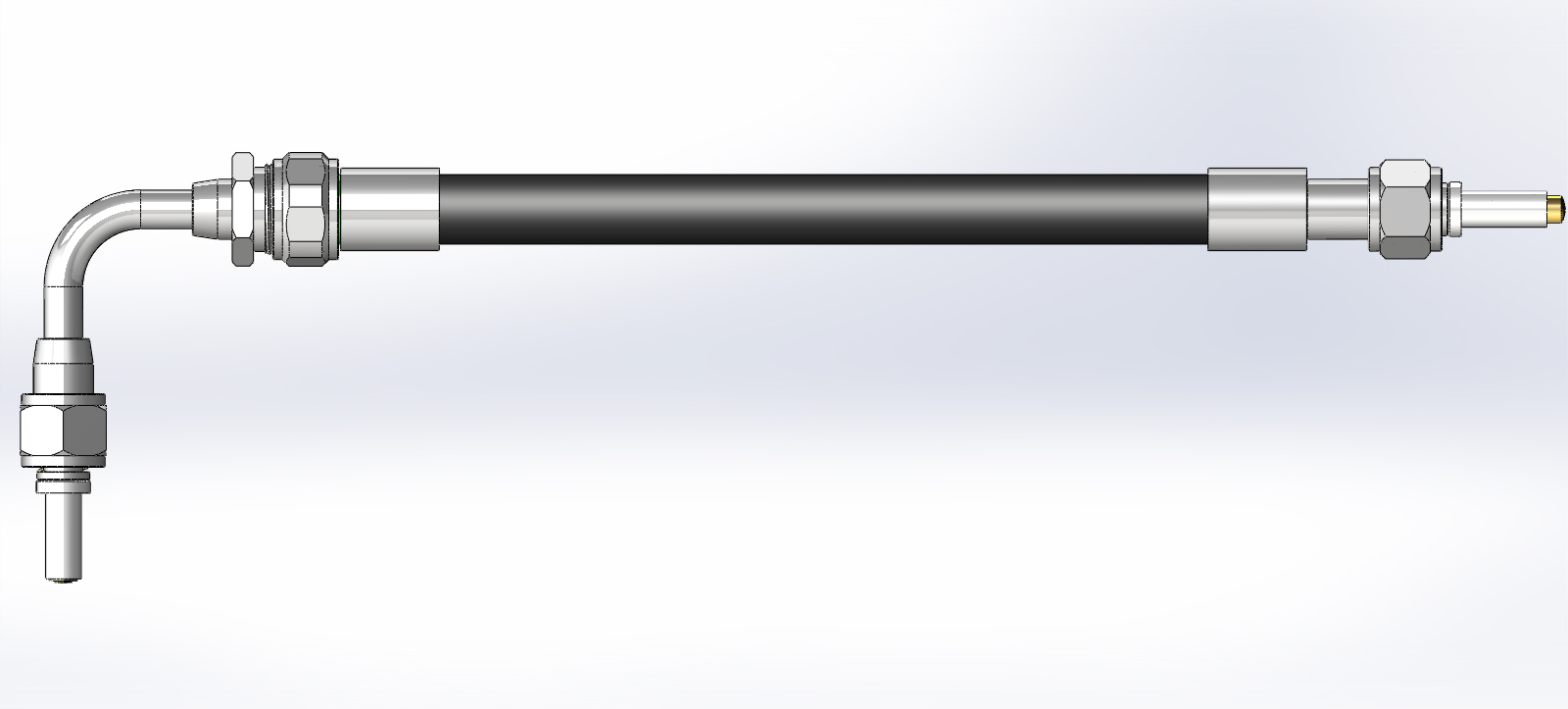

Part No.: HT-FCA-1012

pro_image

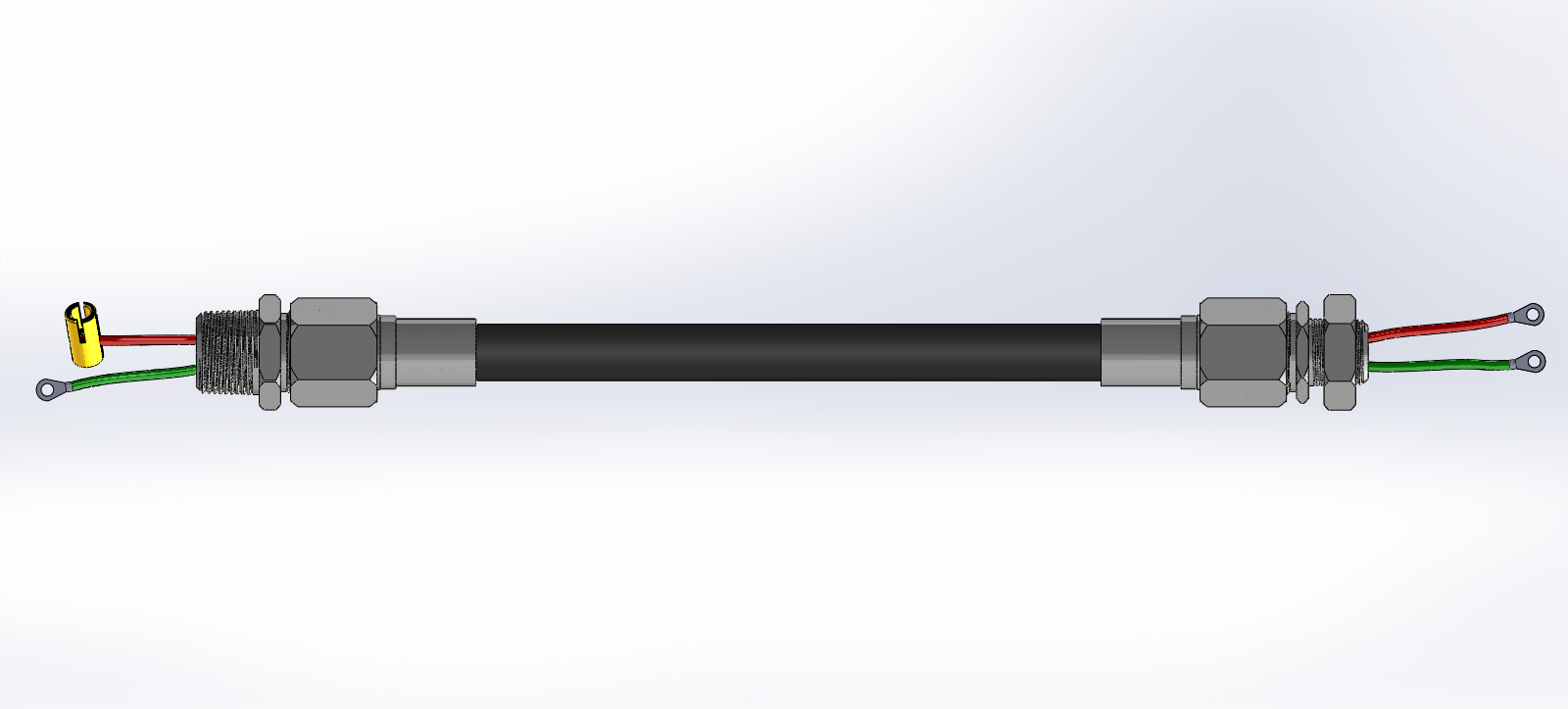

Part No.: HT-FCA-1012-W-T

pro_image

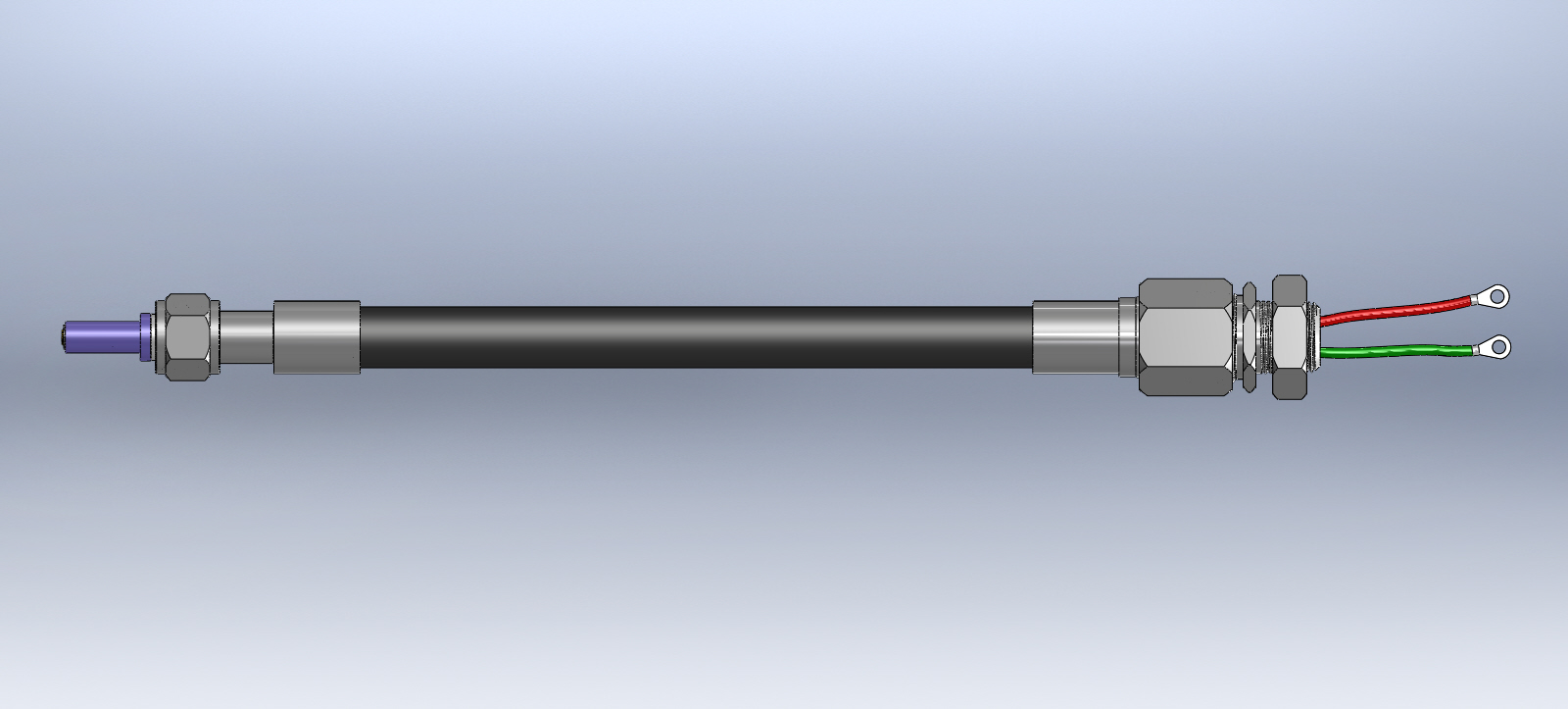

Part No.: HT-FCA-1013-W

pro_image

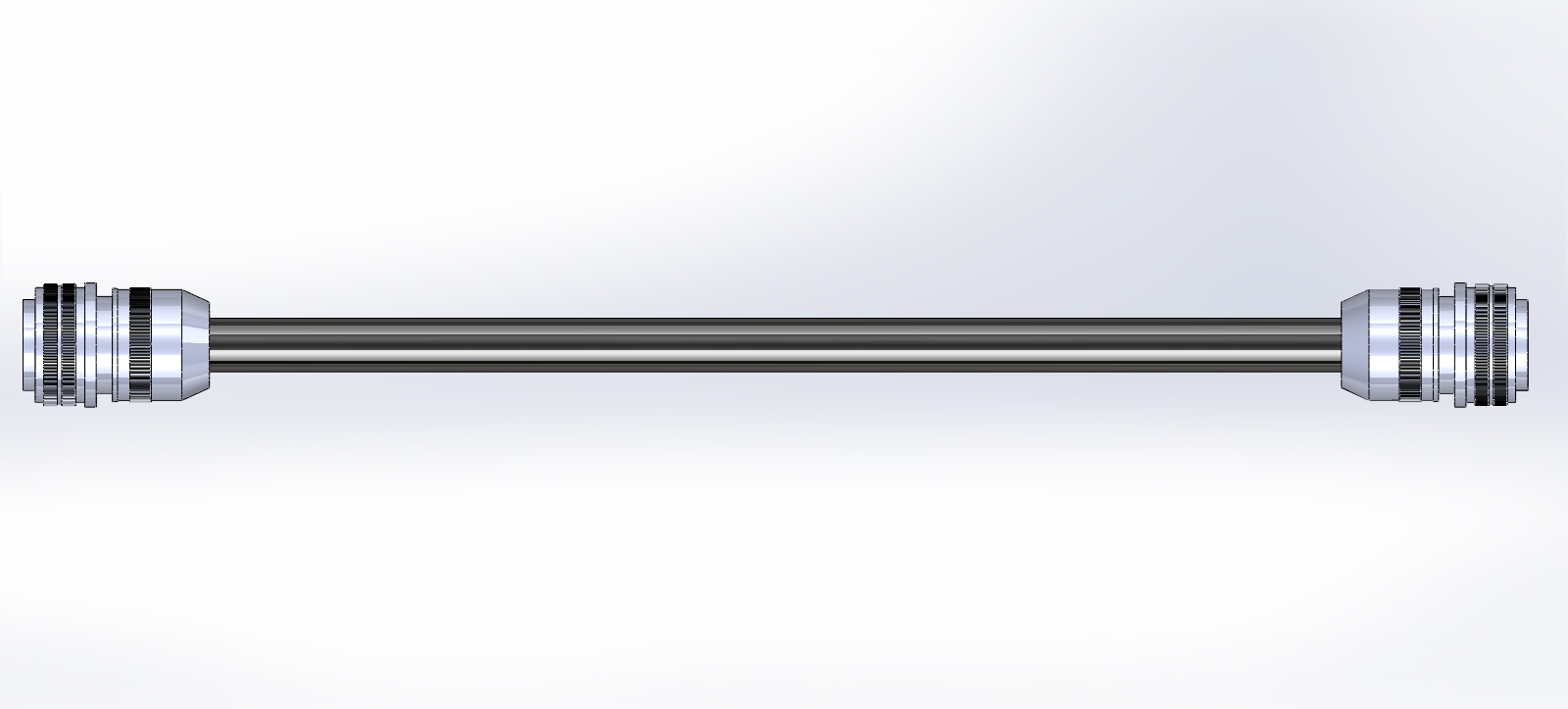

Part No.: HT-FCA-1013-MC

pro_image

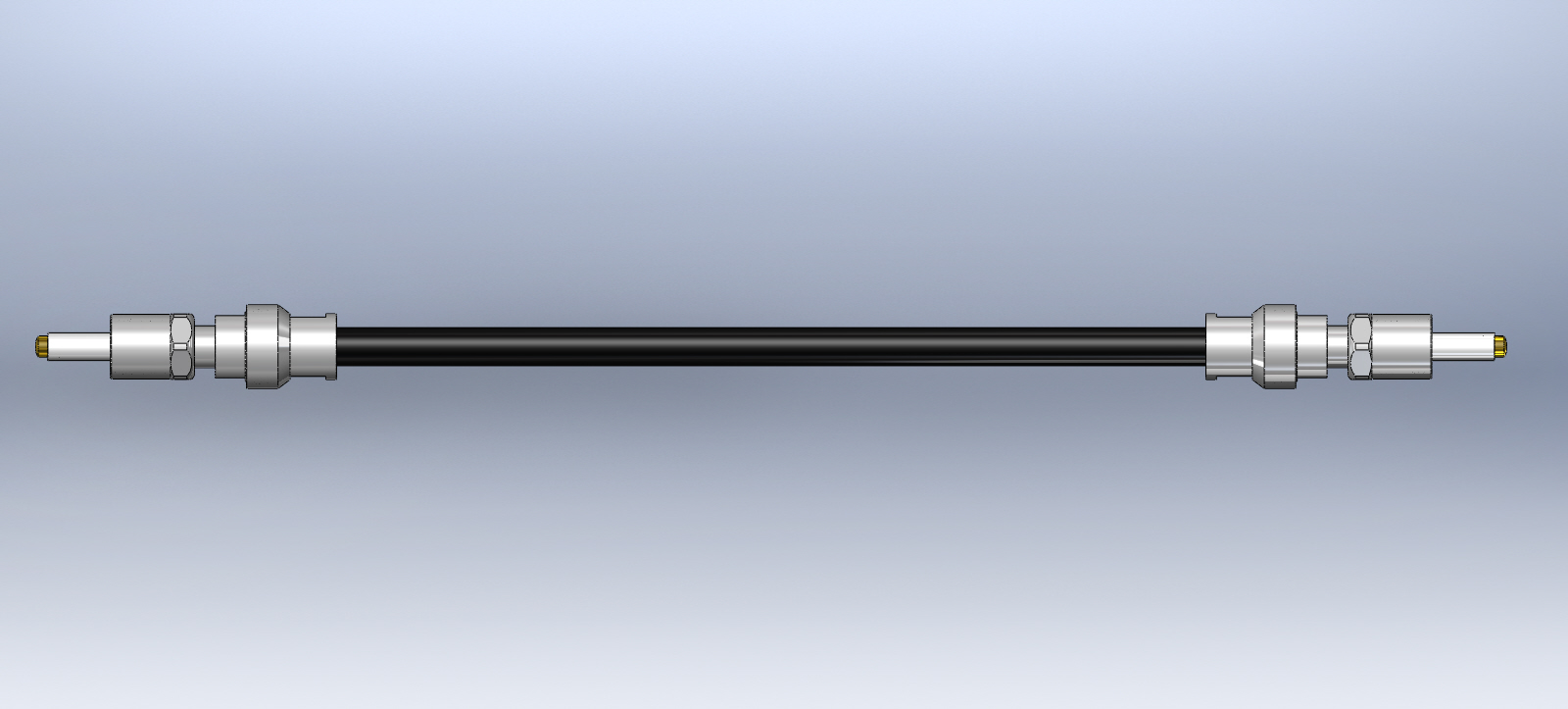

Part No.: HT-FCA-1020

pro_image

Part No.: HT-FCA-1021

pro_image

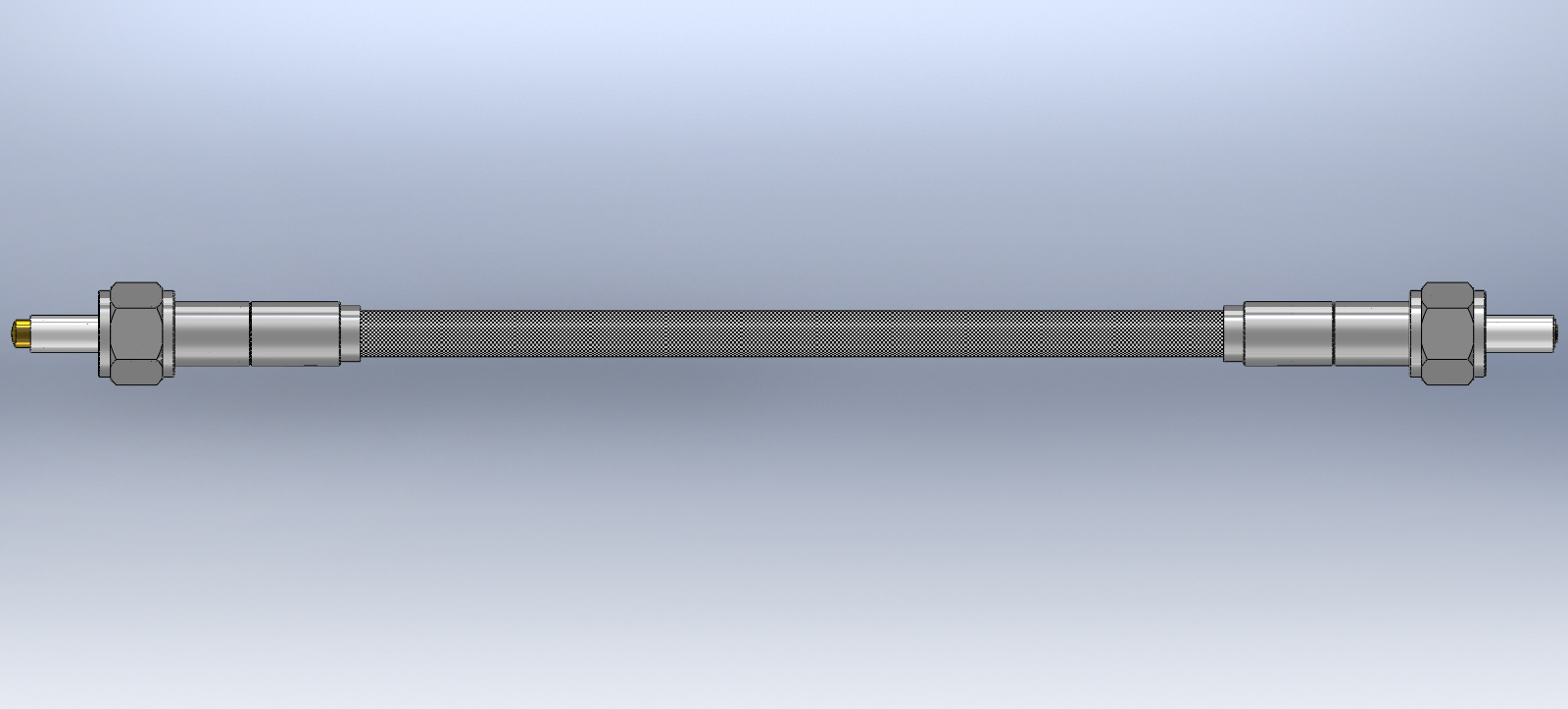

Part No.: HT-FCA-1023
